| No. |
Picture |
Description |
Dimentions |

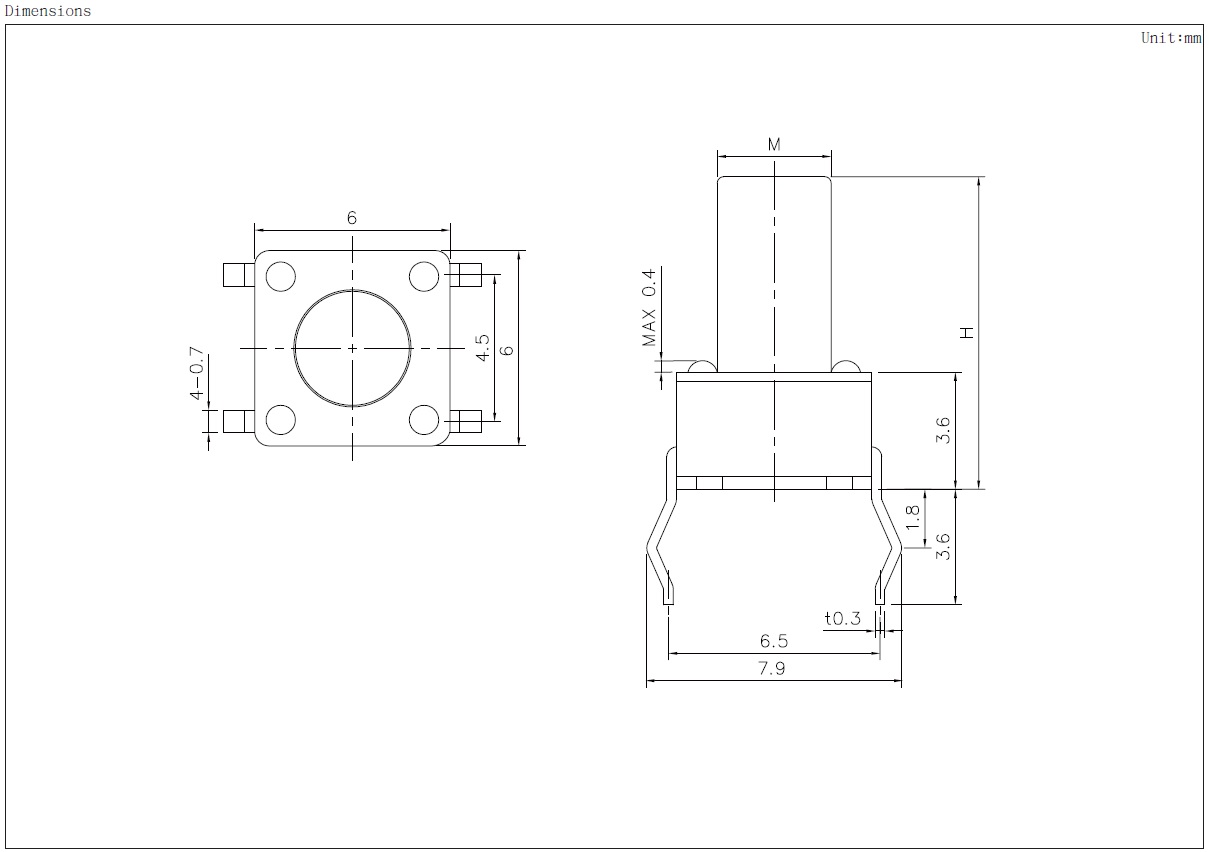

| ST1K02XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：130 / 160 / 250 gf
-
Life：100,000 Cycles
|
|
 |

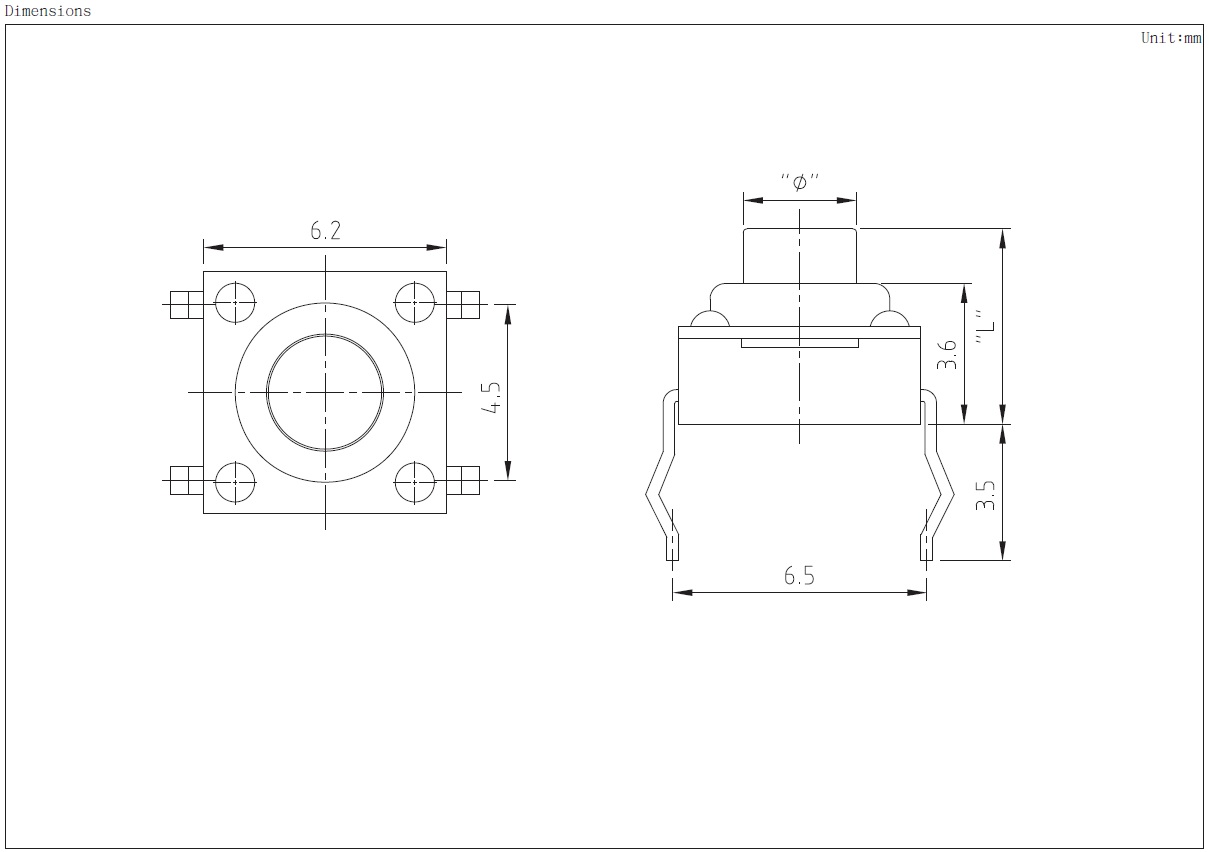

| ST36250RXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.20±0.1mm
-
Operating Force：250±70 gf
-
Life：100,000 Cycles
WATERPROOF
|
|
|

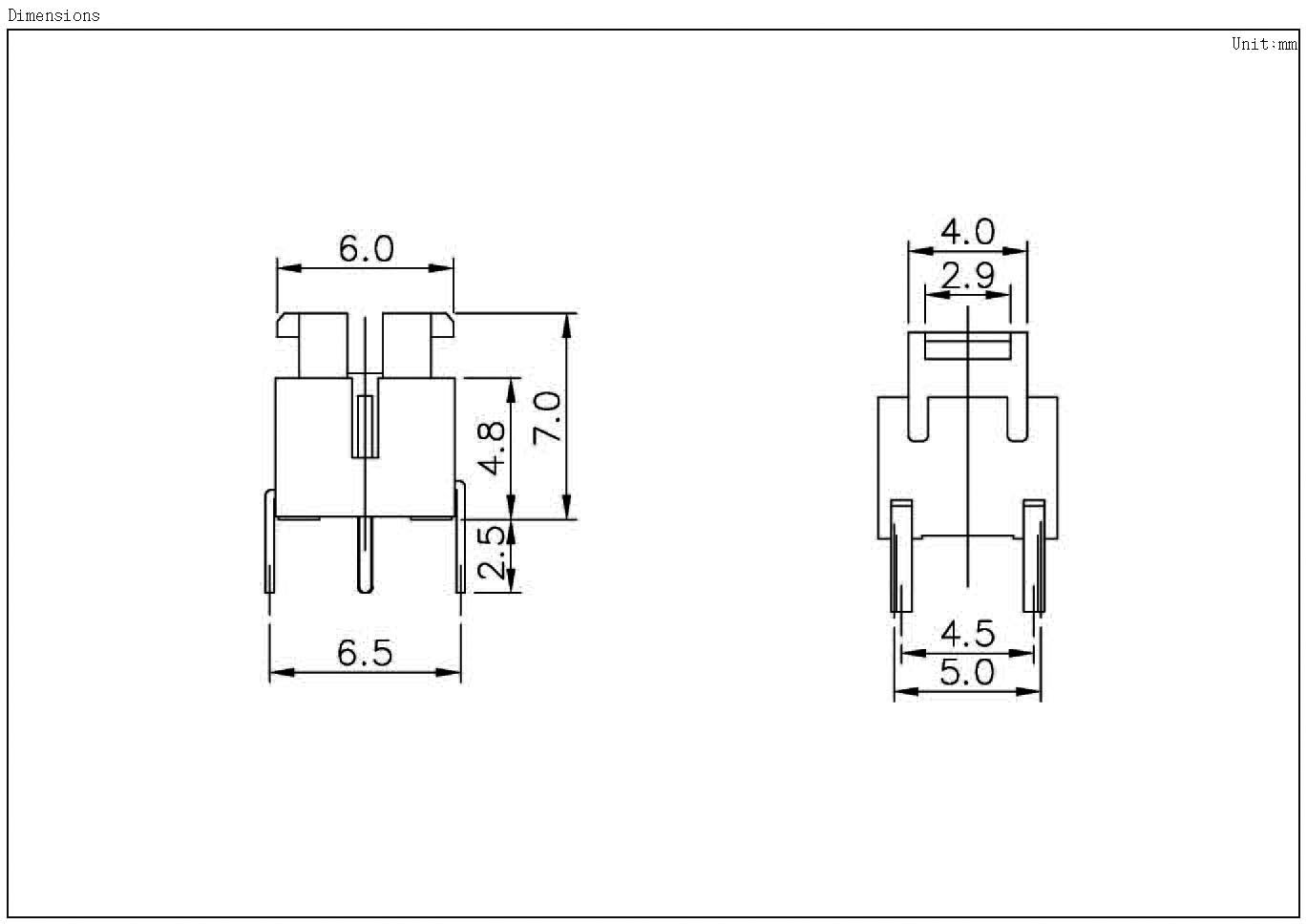

| ST2HJWXXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25mm
-
Operating Force：160、260 gf
-
Life：100,000 Cycles
With LED
|
|
|

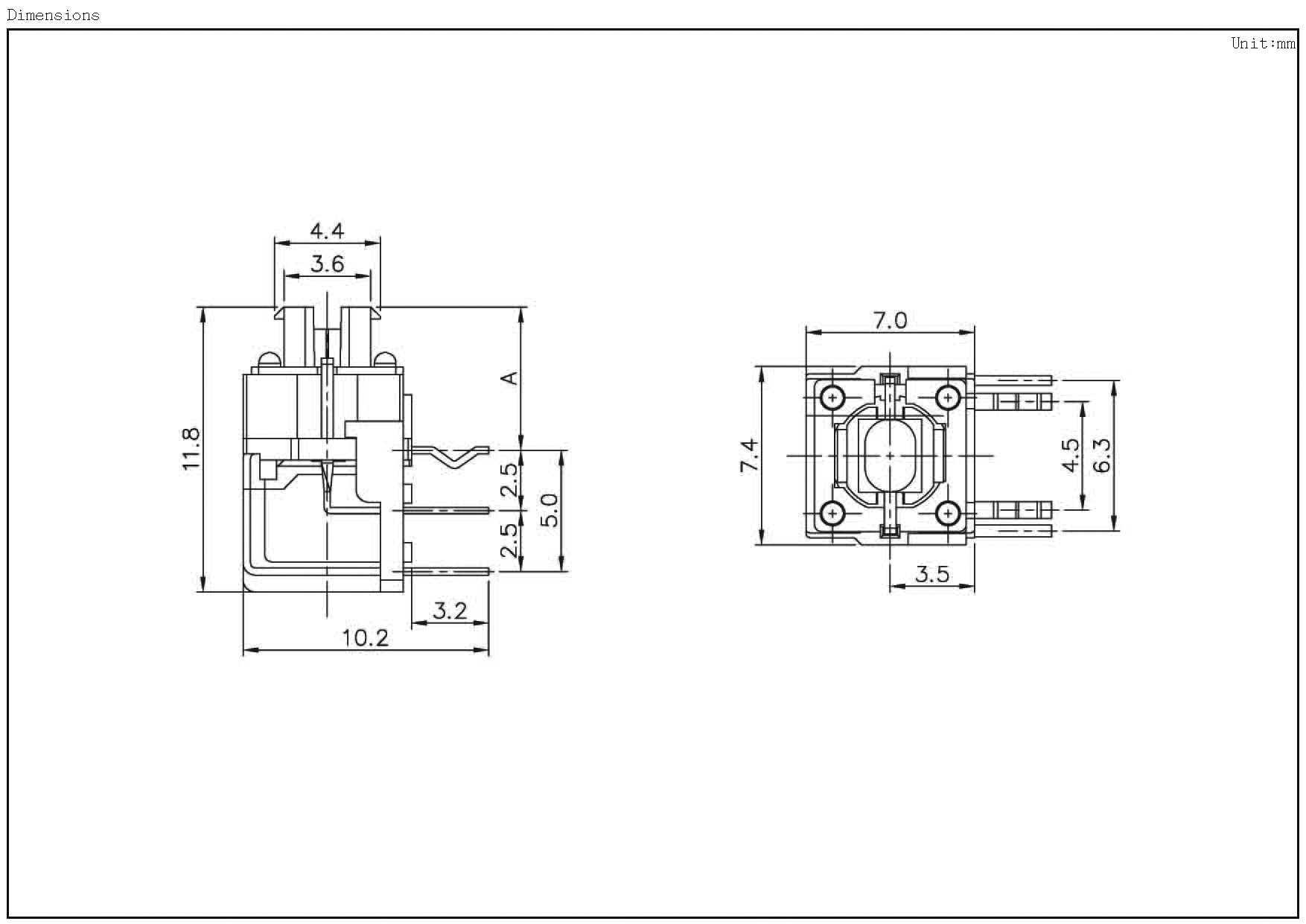

| ST2HJLXXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25mm
-
Operating Force：160、260 gf
-
Life：50,000 Cycles
With LED
|
|
|

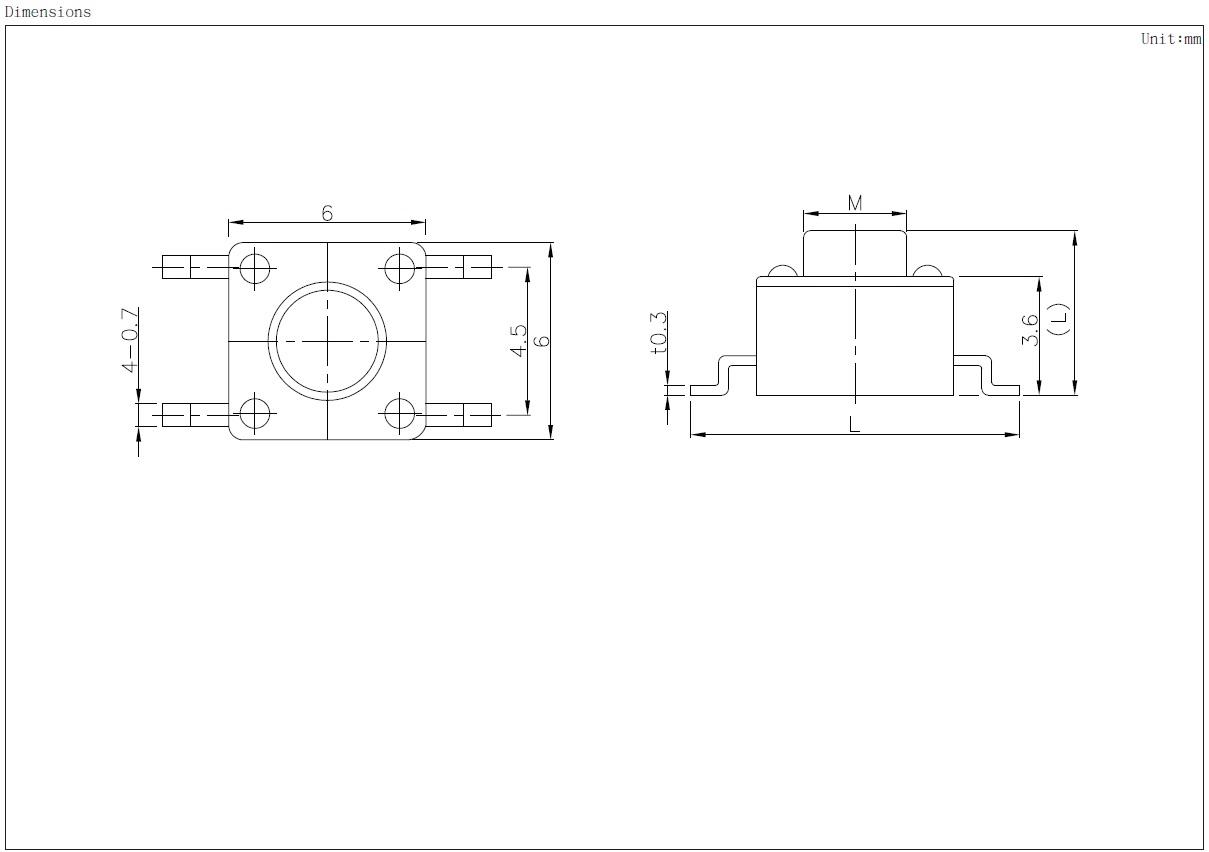

| ST1K02SXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：100 / 130 / 160 / 250 gf
-
Life：50,000 Cycles
|
|
|

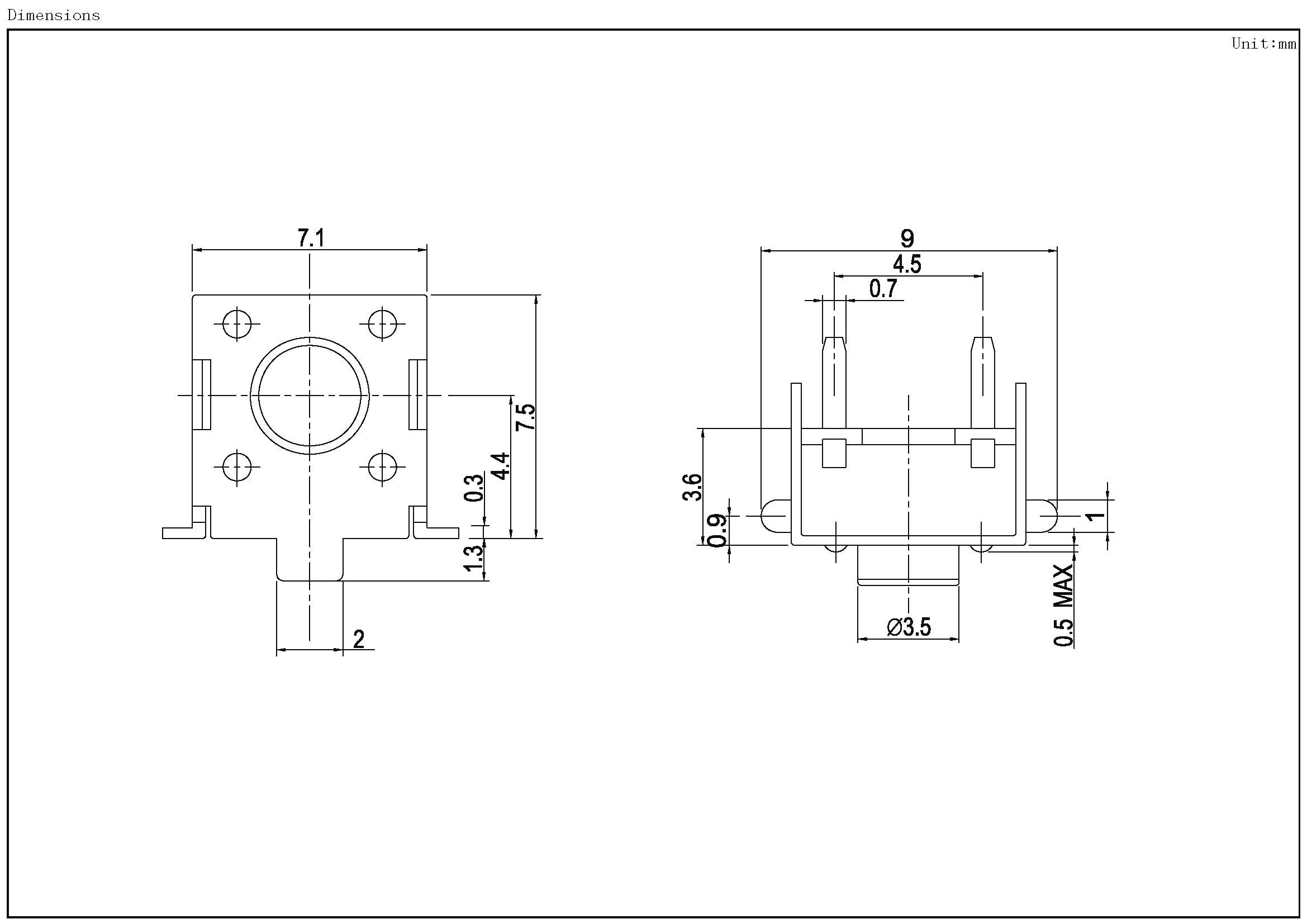

| ST1K02USXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：160±50 gf
-
Life：100,000 Cycles MIN
|
|
|

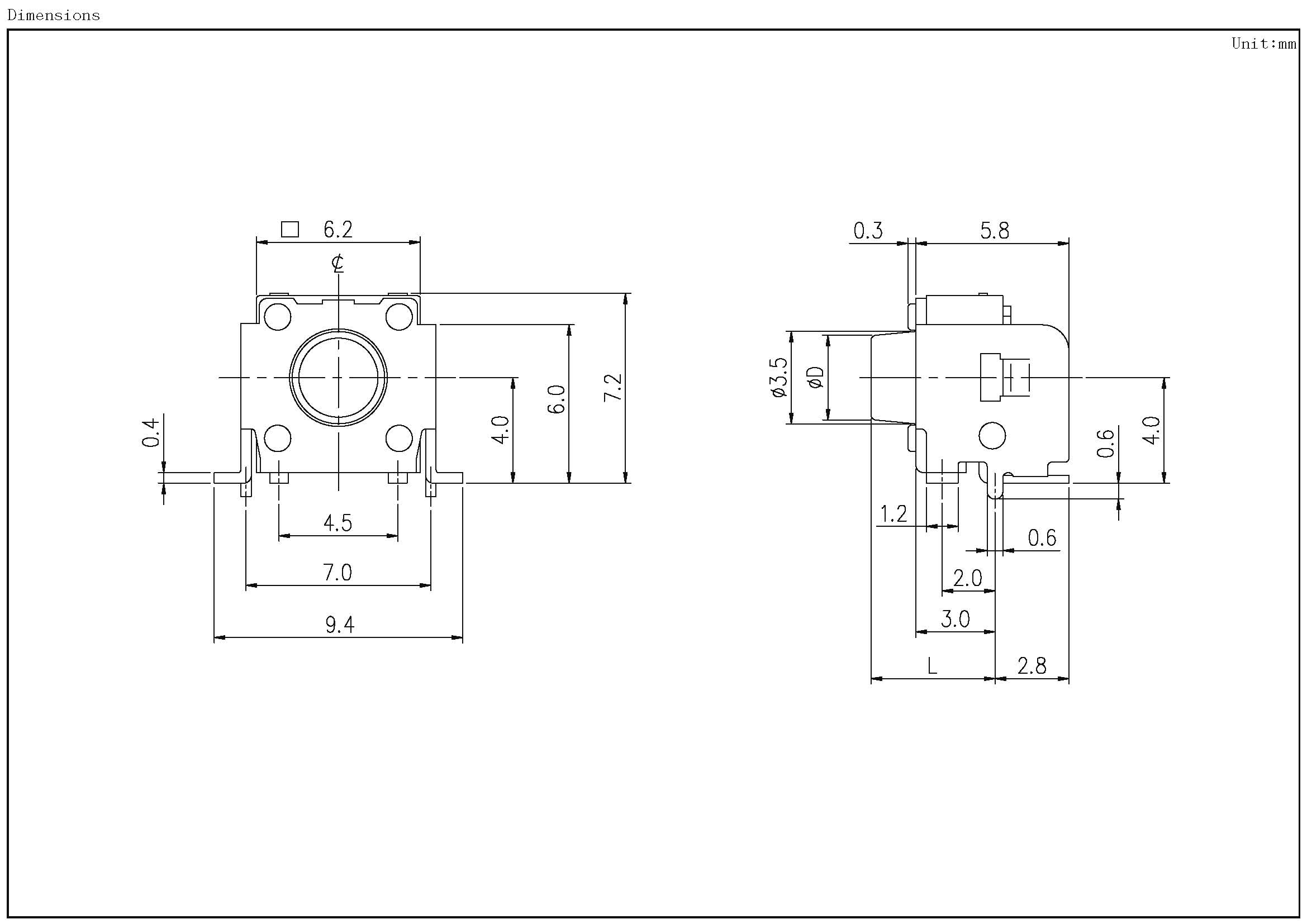

| ST1304XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.2/0.1mm
-
Operating Force：160±50 gf
-
Life：1,000,000 Cycles
|
|
|

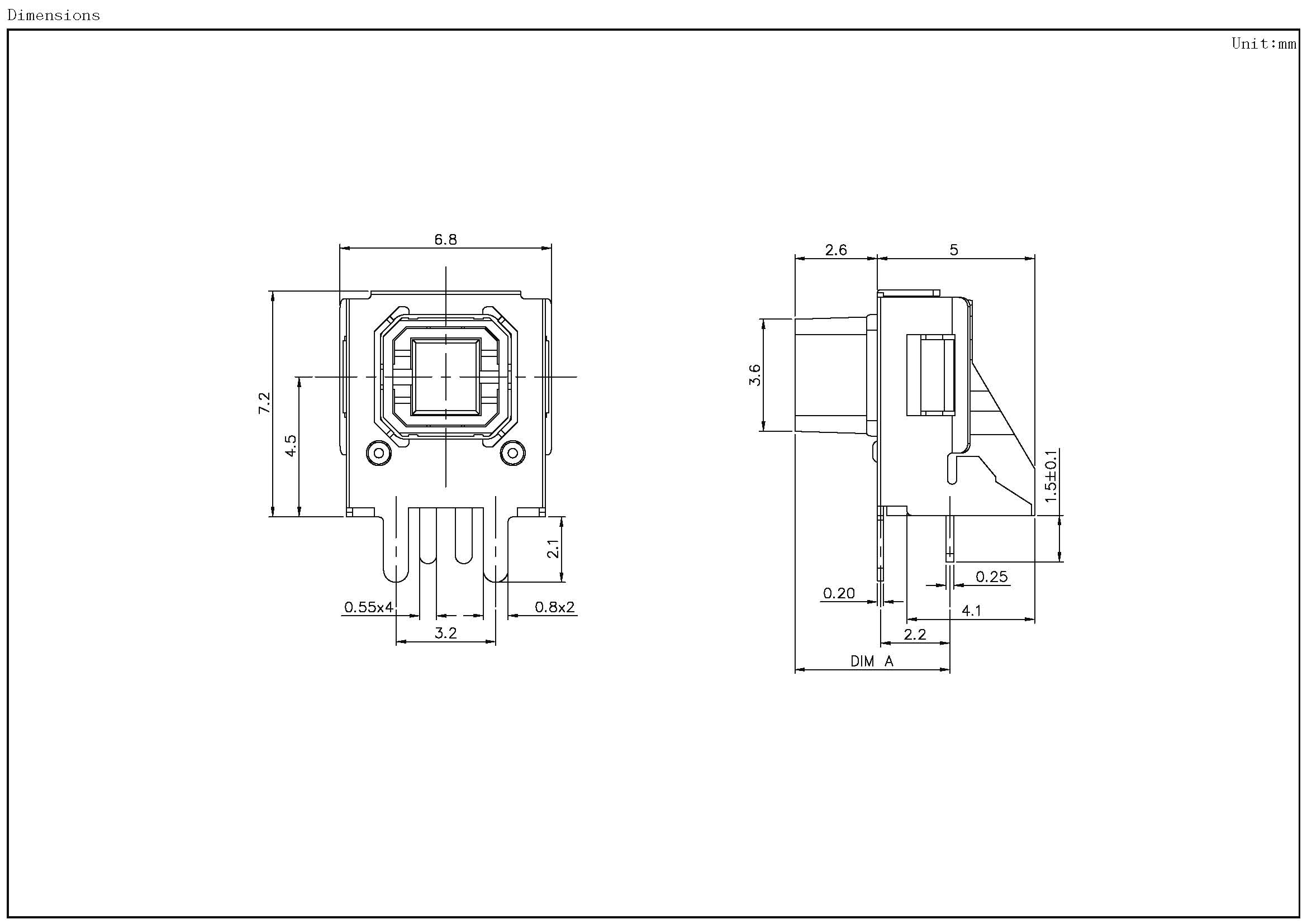

| ST2AAA1540XX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：220 gf
-
Life：100,000 Cycles
With LED
|
|
|

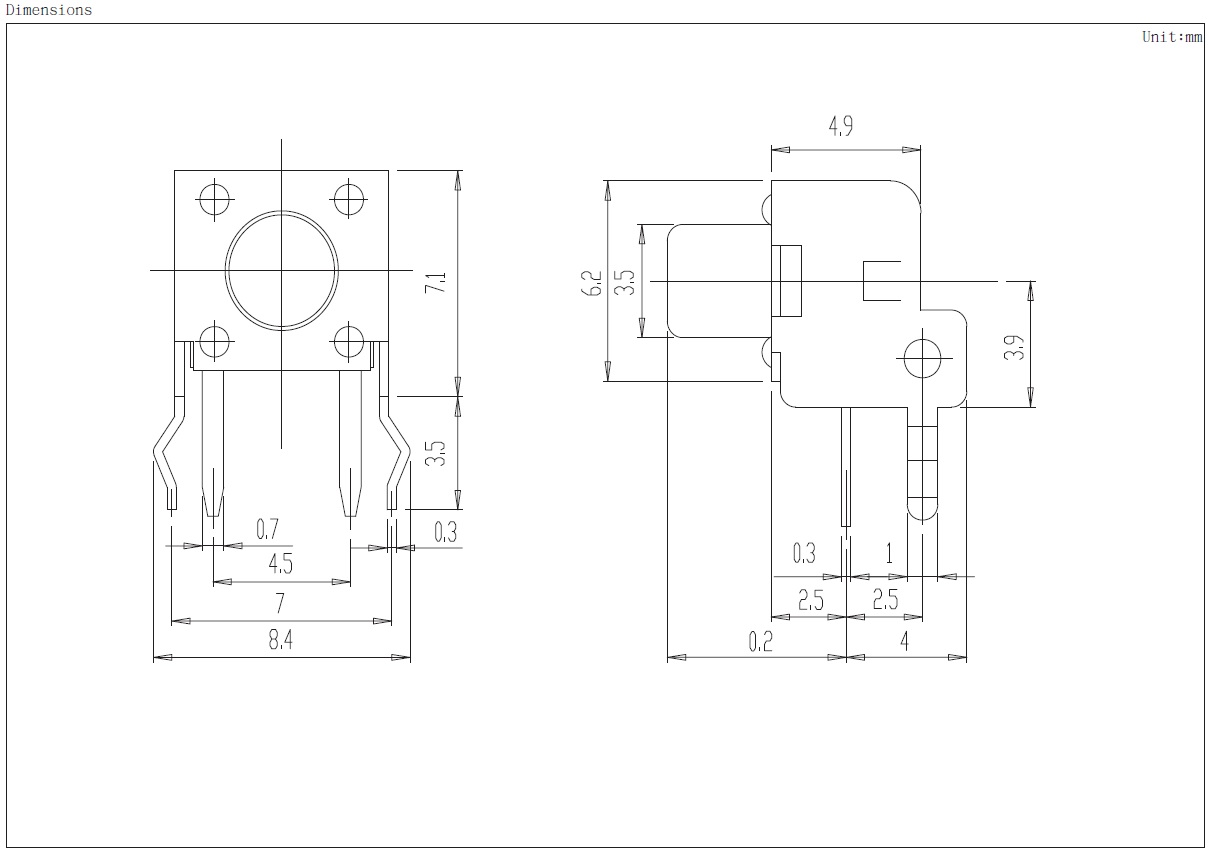

| ST1K02VXXXXX |
 |
| |
-
Rating：DC 12V 50mA MAX
-
Travel：0.25±0.1mm
-
Operating Force：160 / 260 gf
-
Life：100,000 Cycles
|
|
|

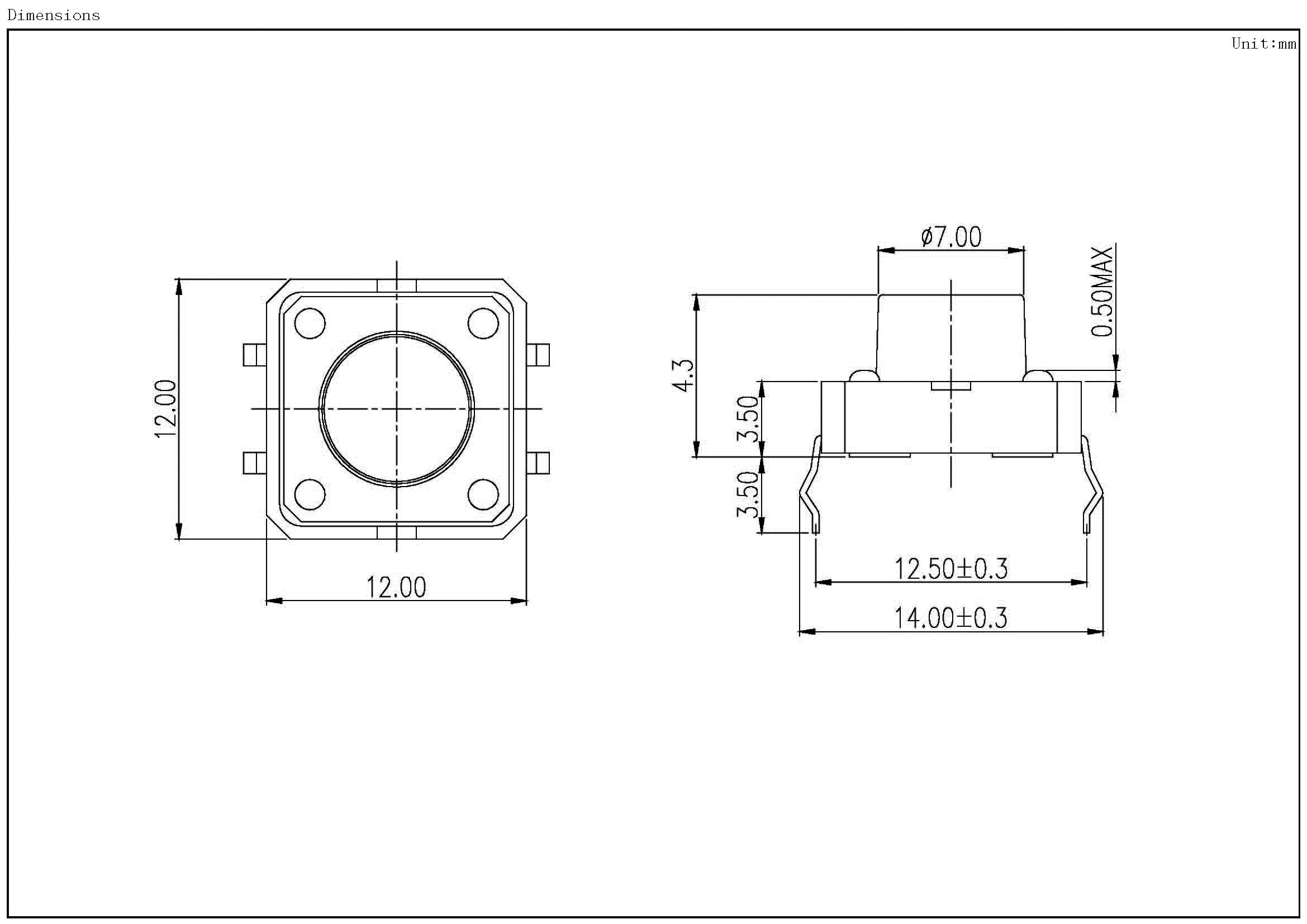

| ST101043XXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.35±0.1mm
-
Operating Force：160±30 gf
-
Life：100,000 Cycles
|
|
|

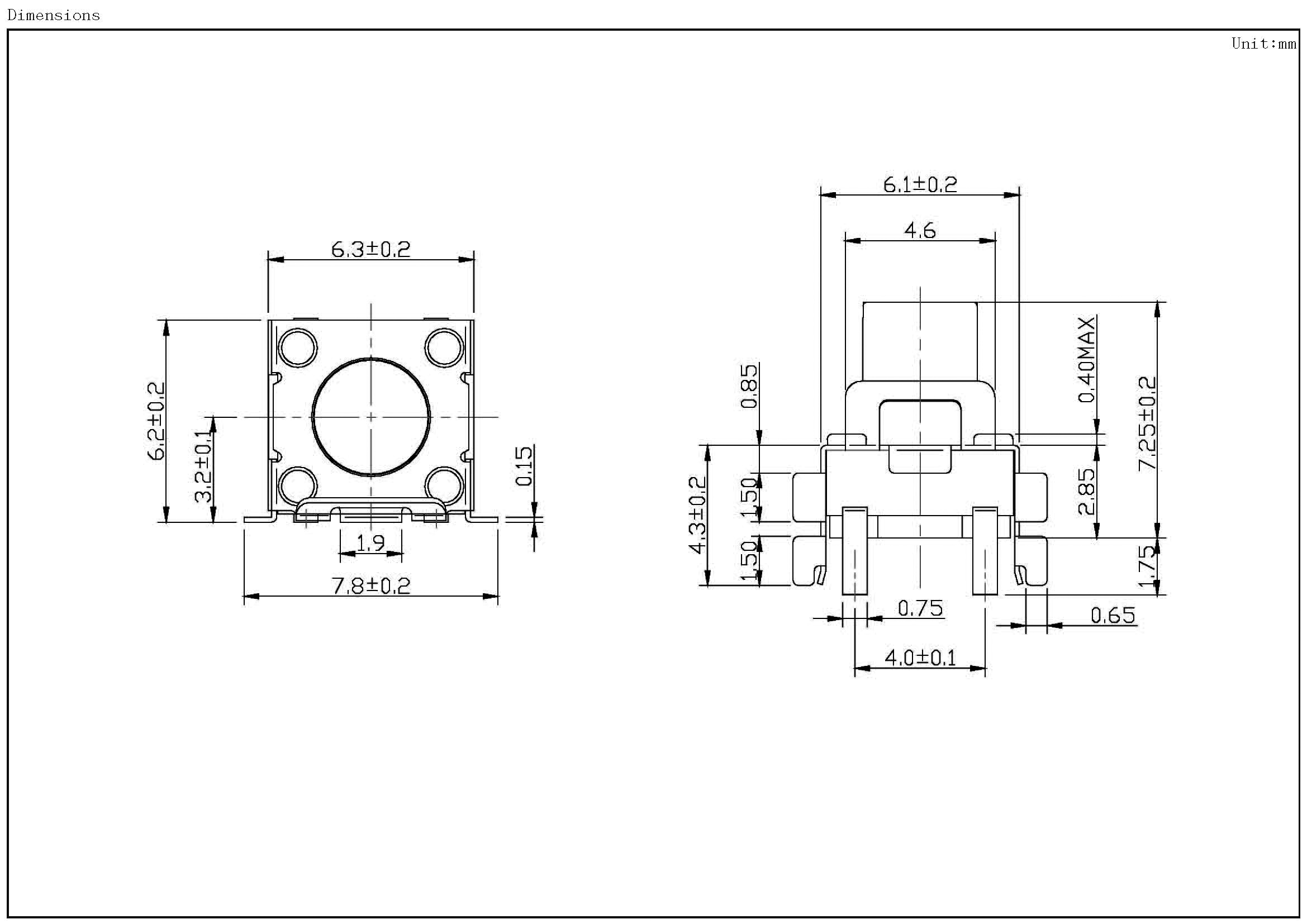

| ST103CWXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.30±0.1mm
-
Operating Force：250±50 gf
-
Life：300,000 Cycles
|
|
|

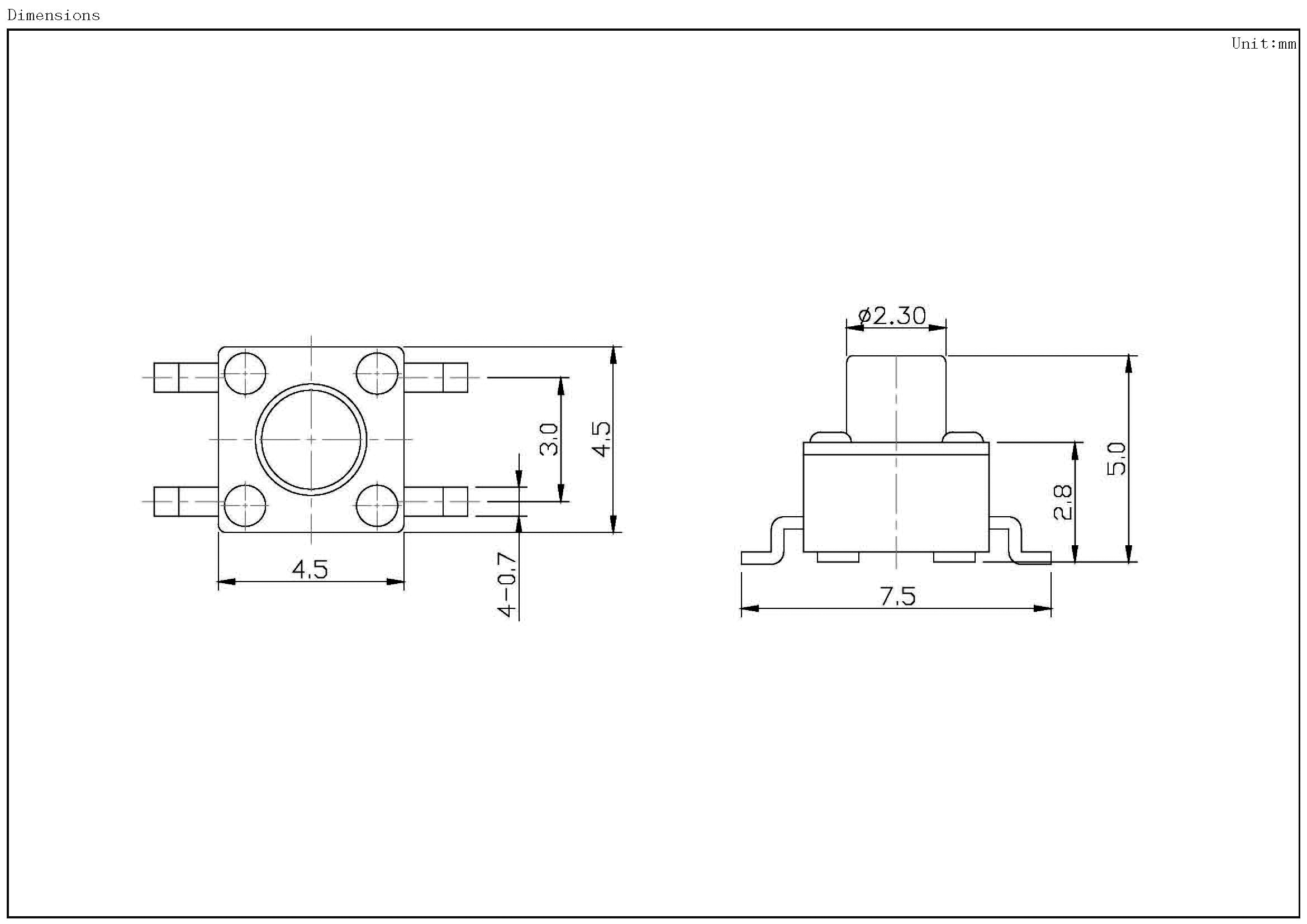

| ST1M01XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：250±50 gf
-
Life：100,000 Cycles
|
|
|

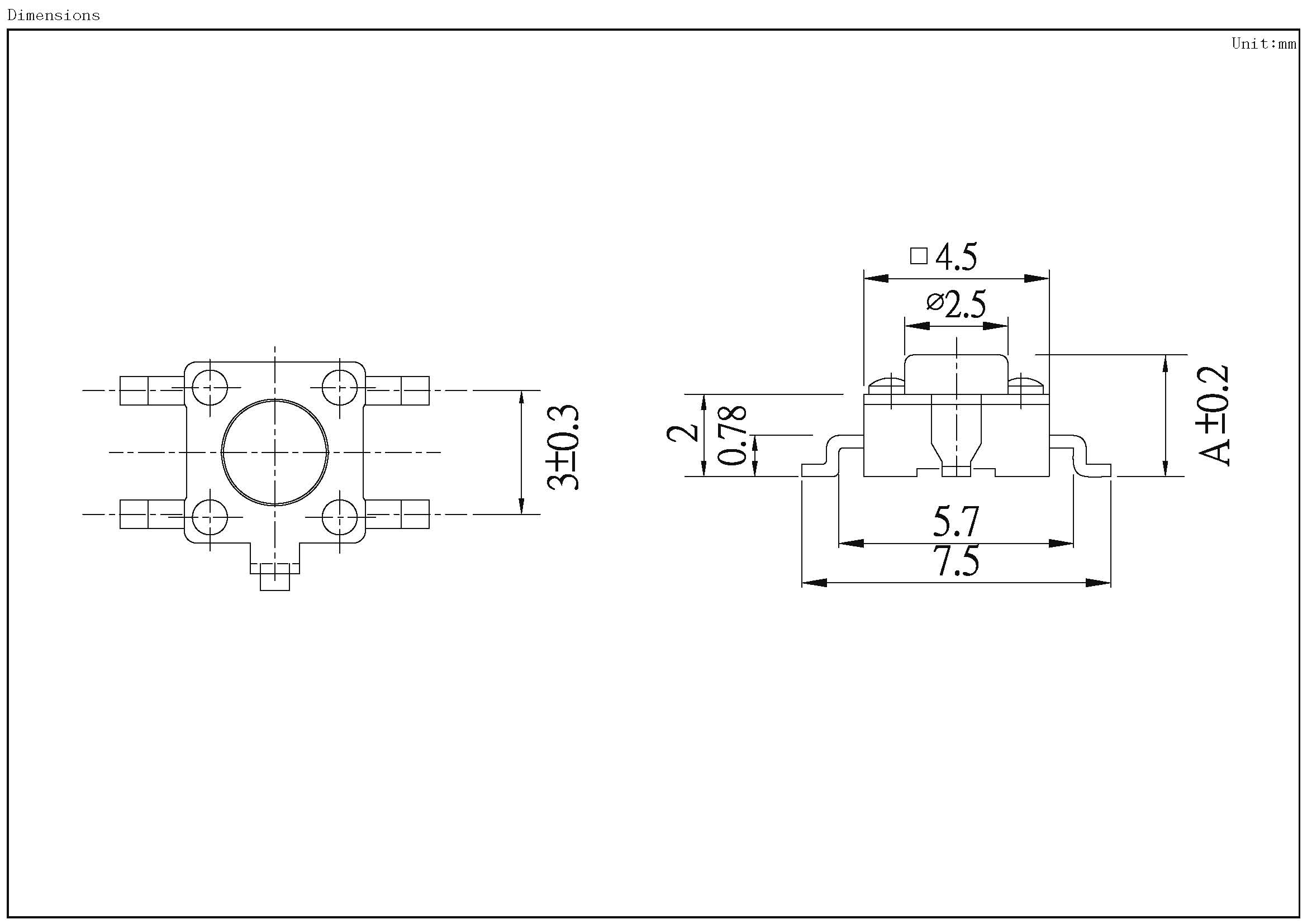

| ST1RMP2XX1XX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25+0.2/-0.1mm
-
Operating Force：100/160±50gf / 260±70gf
-
Life：100,000 Cycles
|
|
|
| ST1HA1428XXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.2mm
-
Operating Force：160±50 gf
-
Life：100,000 Cycles
-
4.5 X 4.5 mm Type
|
|
|

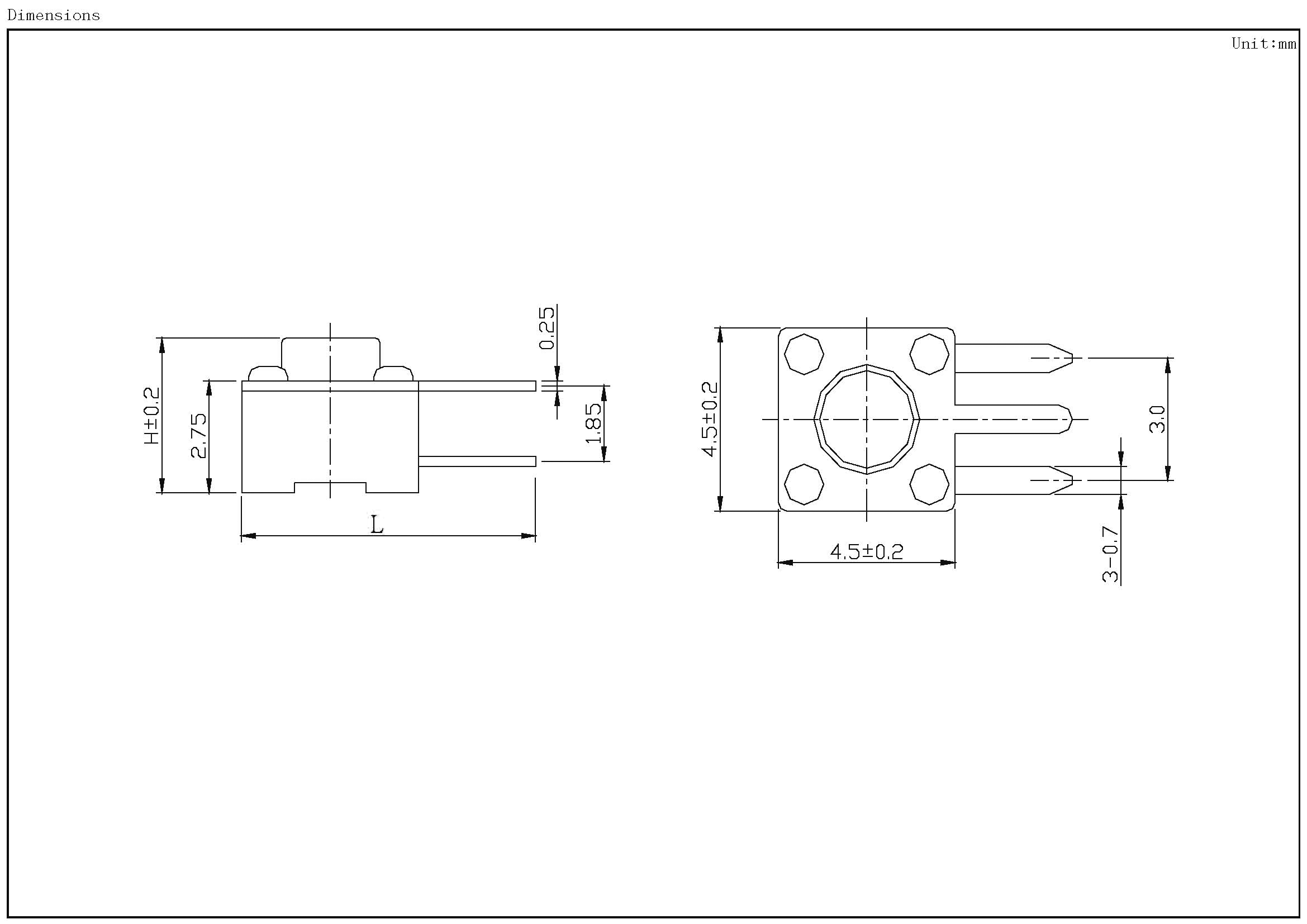

| ST103BXXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：160/250±50 gf
-
Life：160gf/50,000 Cycles / 250gf/100,000 Cycles
|
|
|

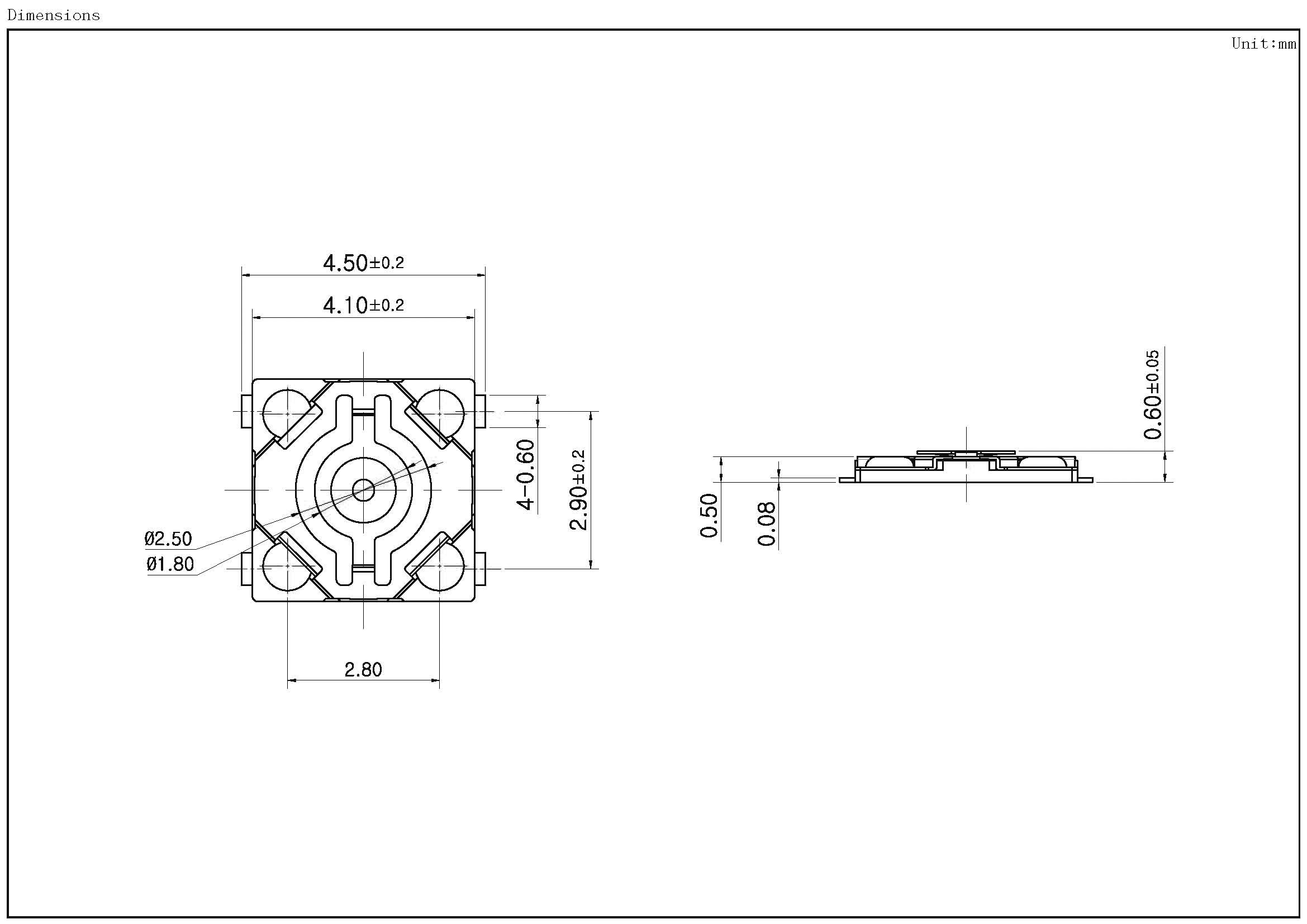

| ST1K82XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.2±0.1mm
-
Operating Force：160,250±50 gf
-
Life：100,000 Cycles MIN
|
|
|

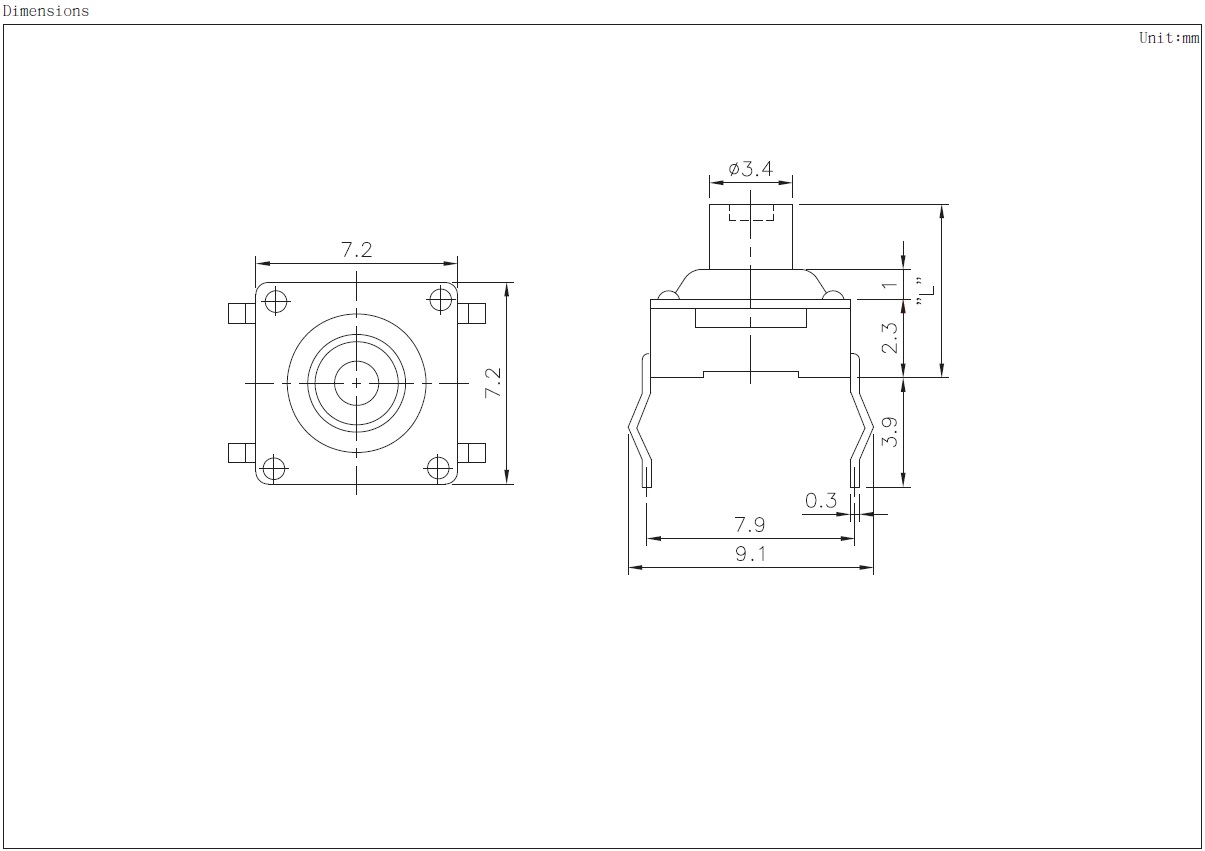

| ST3K07XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.3±0.1mm
-
Operating Force：200±70 gf
-
Life：100,000 Cycles
WATERPROOF
|
|
|

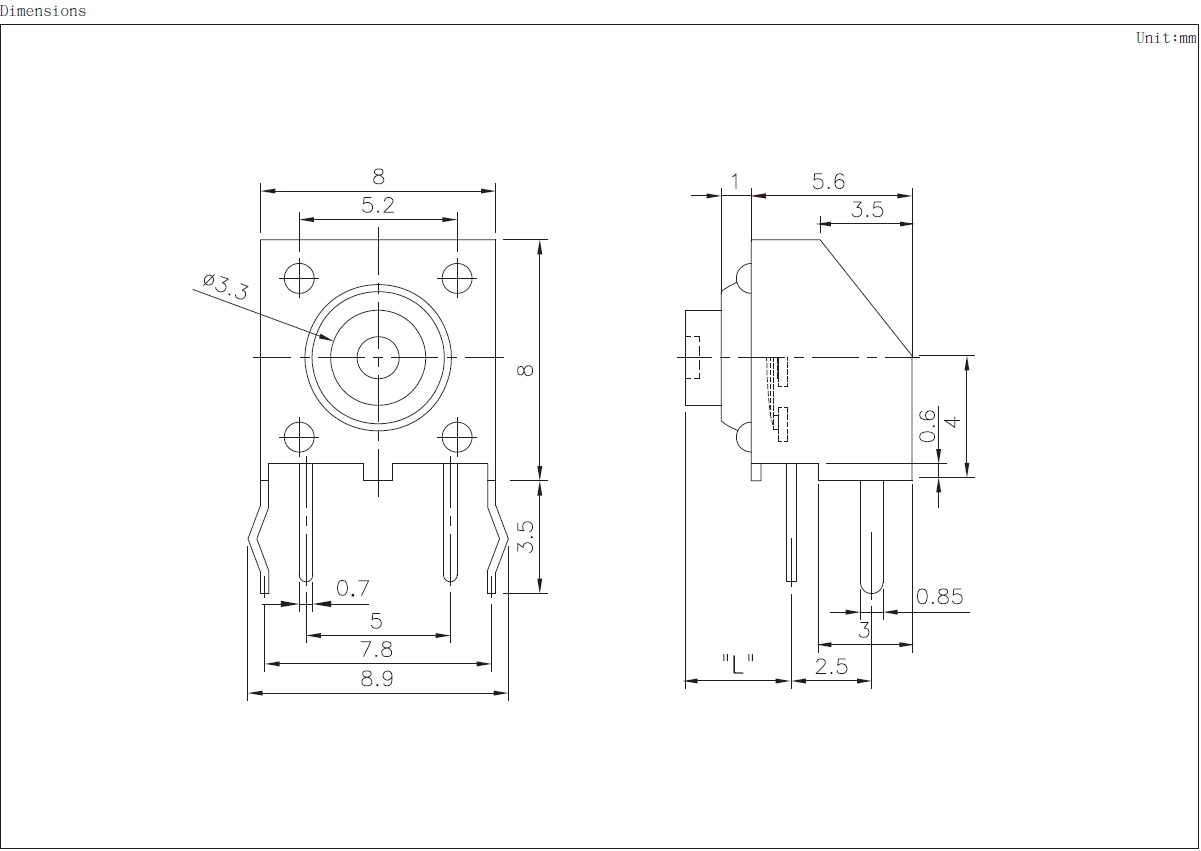

| ST3K07VXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.3±0.1mm
-
Operating Force：200±70 gf
-
Life：100,000 Cycles
WATERPROOF
|
|
|

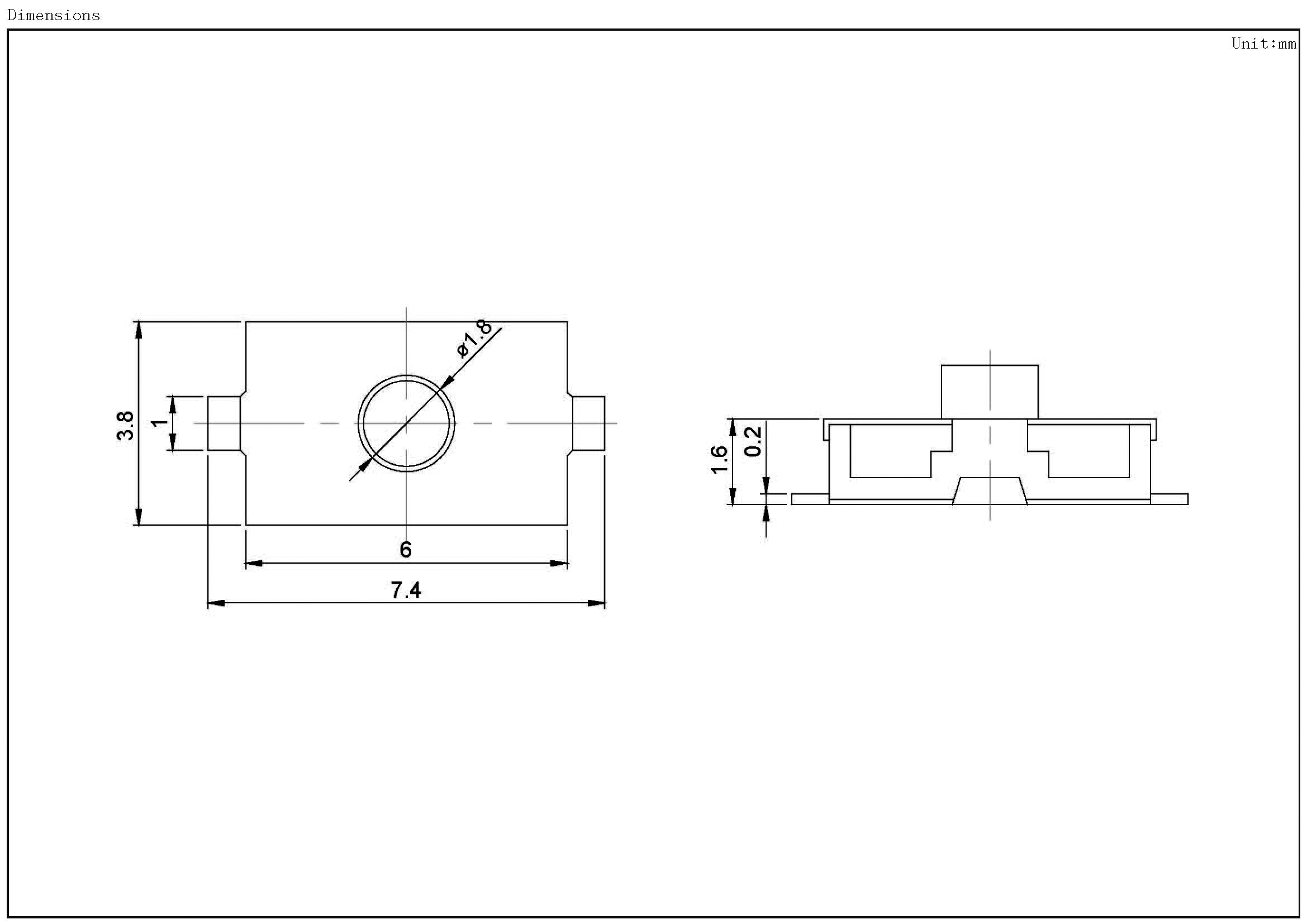

| ST1B22XXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.25±0.1mm
-
Operating Force：160 / 250 gf
-
Life：30,000~50,000 Cycles
|
|
|

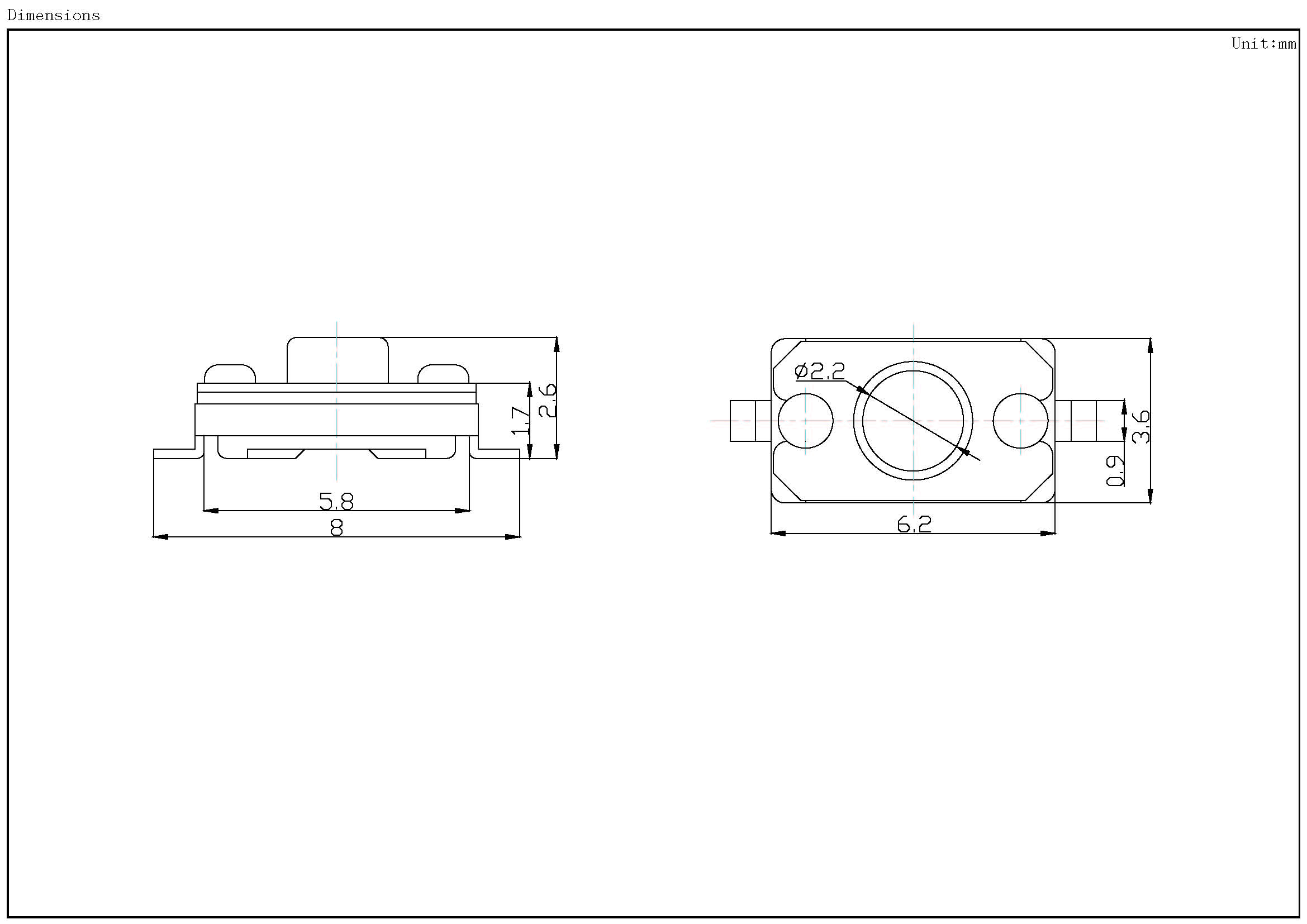

| ST85LXXXXXXX |
 |
| |
-
Rating：DC 12V 50mA
-
Travel：0.4±0.2mm
-
Operating Force：160 / 260 gf
-
Life：50,000 Cycles
RUBBER SWITCH
|
|
|
|
